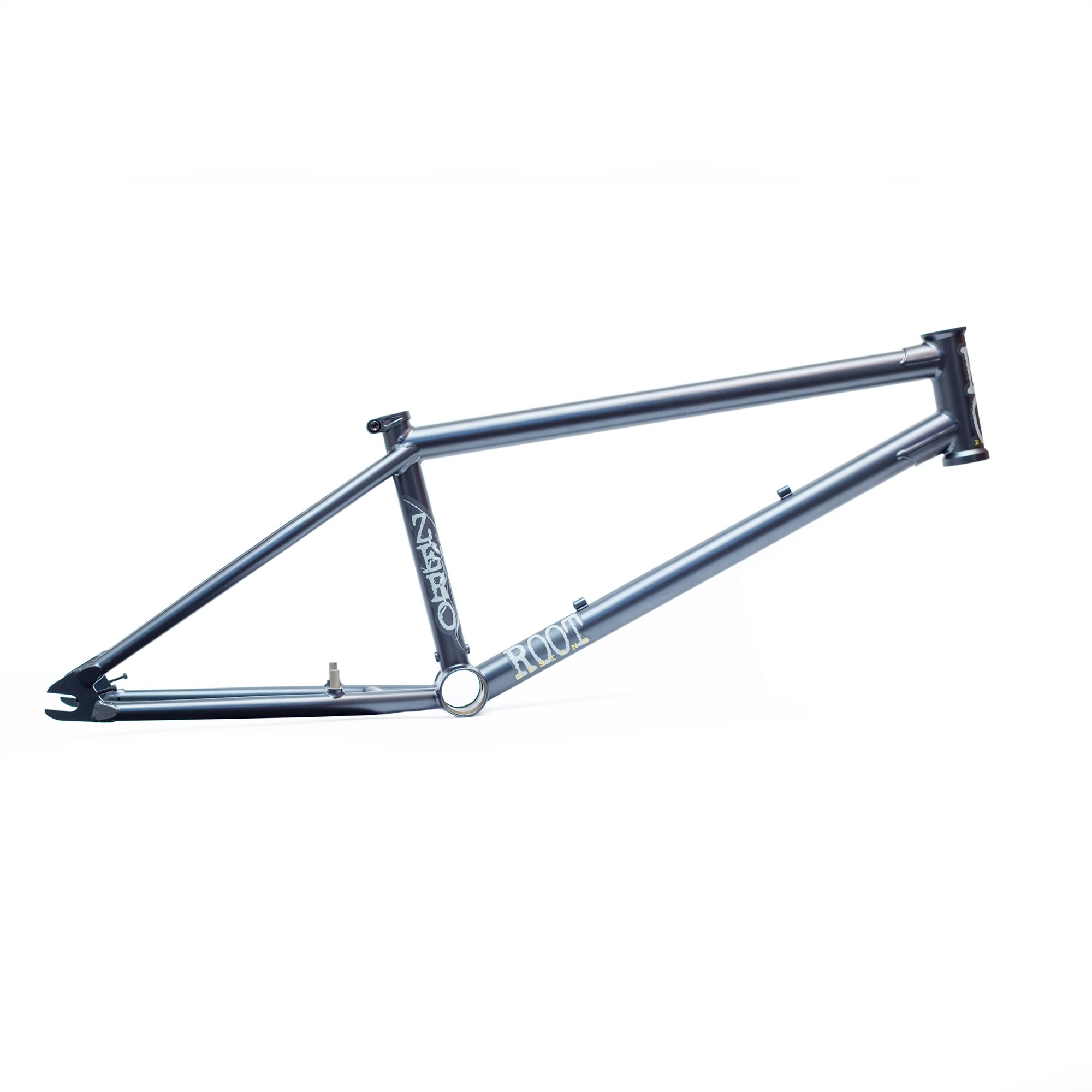

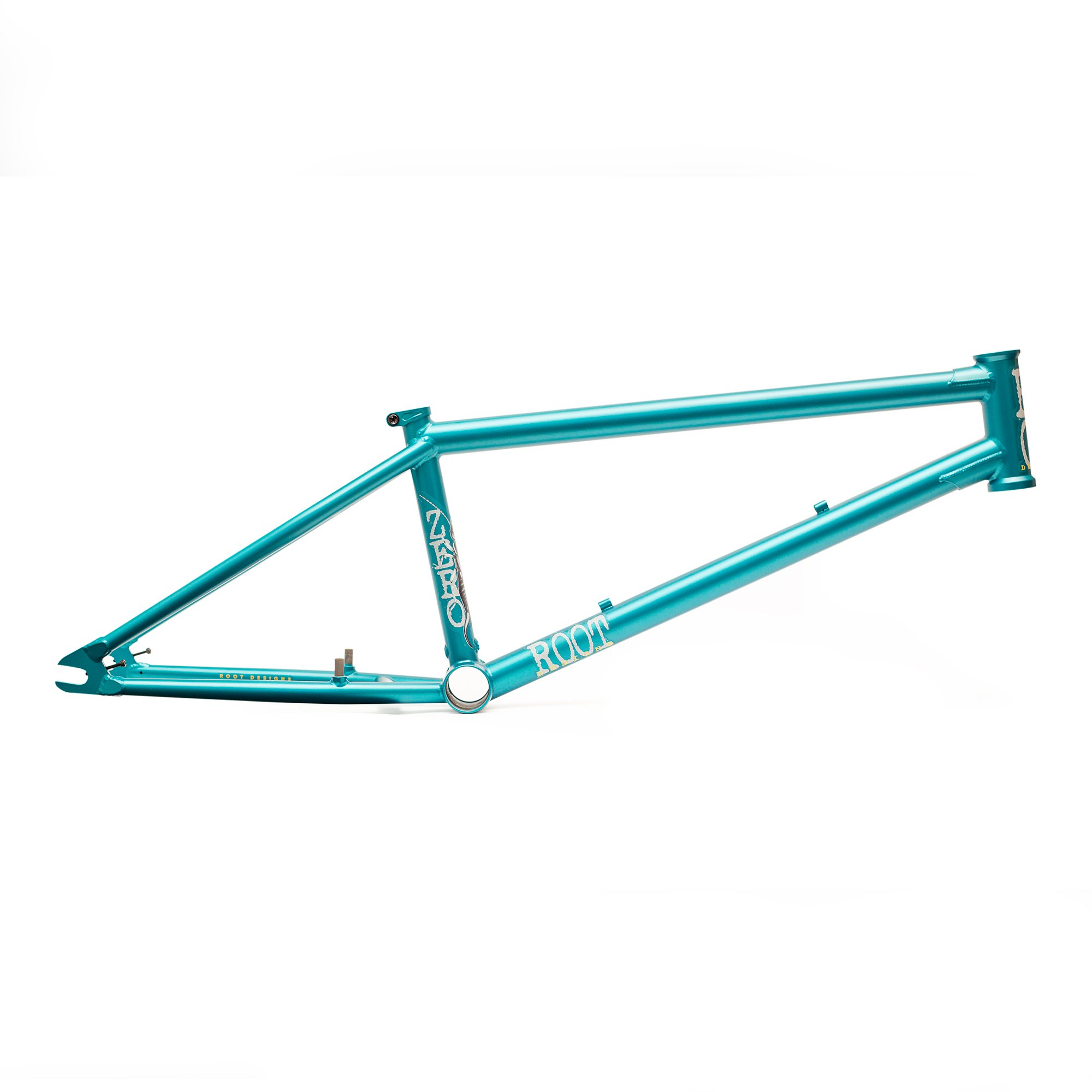

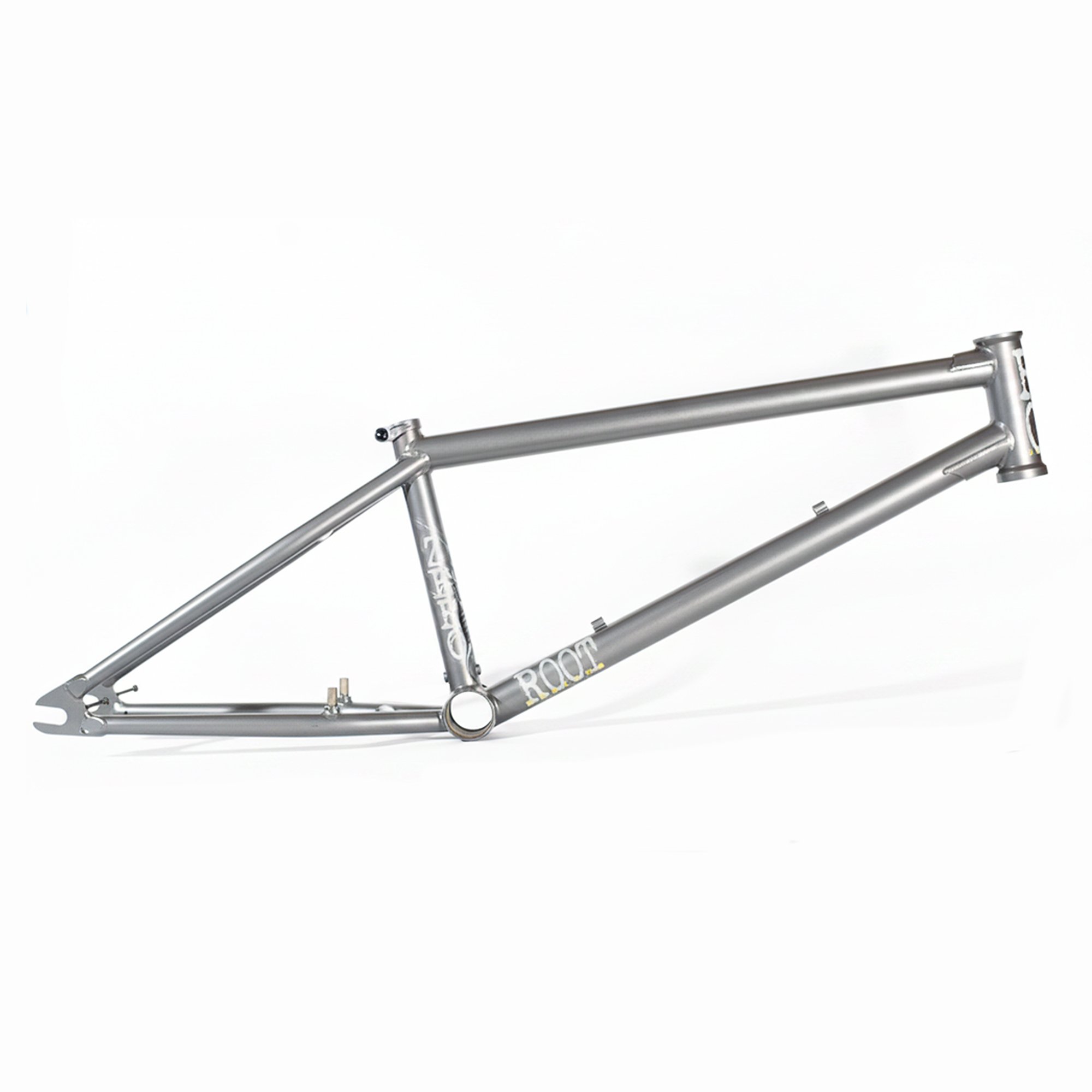

Root 'Zero' 20" BMX frame

It’s never easy to spec the ultimate jumping frame but that’s exactly what tried to do – with feedback from like-minded individuals.

Welded brake mounts were a priority. We wanted a long headtube to minimize the need for both spacers and steerer tube cutting. We specced double head tube gussets for maximum strength. We wanted a drop out with integrated chain tensioners that would be immediately recognisable, a wider tapered BB and a seat-tube cable stop.

Above all we wanted stable geometry and the butted/tapered tubing that most of our competitors struggle to supply.

SANKO SEEMLESS CR0-MOLY CONSTRUCTION
TAPERED CHAIN AND SEAT STAYS
DOUBLE BUTTED TOP AND DOWN TUBES
130mm HEAT-TREATED HEADTUBE
74mm TAPERED MID BB
CLEARANCE FOR 36t SPROCKETS AND 2.5" TYRES
INTERGRATED SEAT CLAMP
TOP TUBE LENGTH: 21” OR 21.5”
CHAIN STAY LENGTH: 14” - 14.75”
HEAD TUBE ANGLE: 74.0 DEGREES
SEAT TUBE ANGLE: 71.0 DEGREES

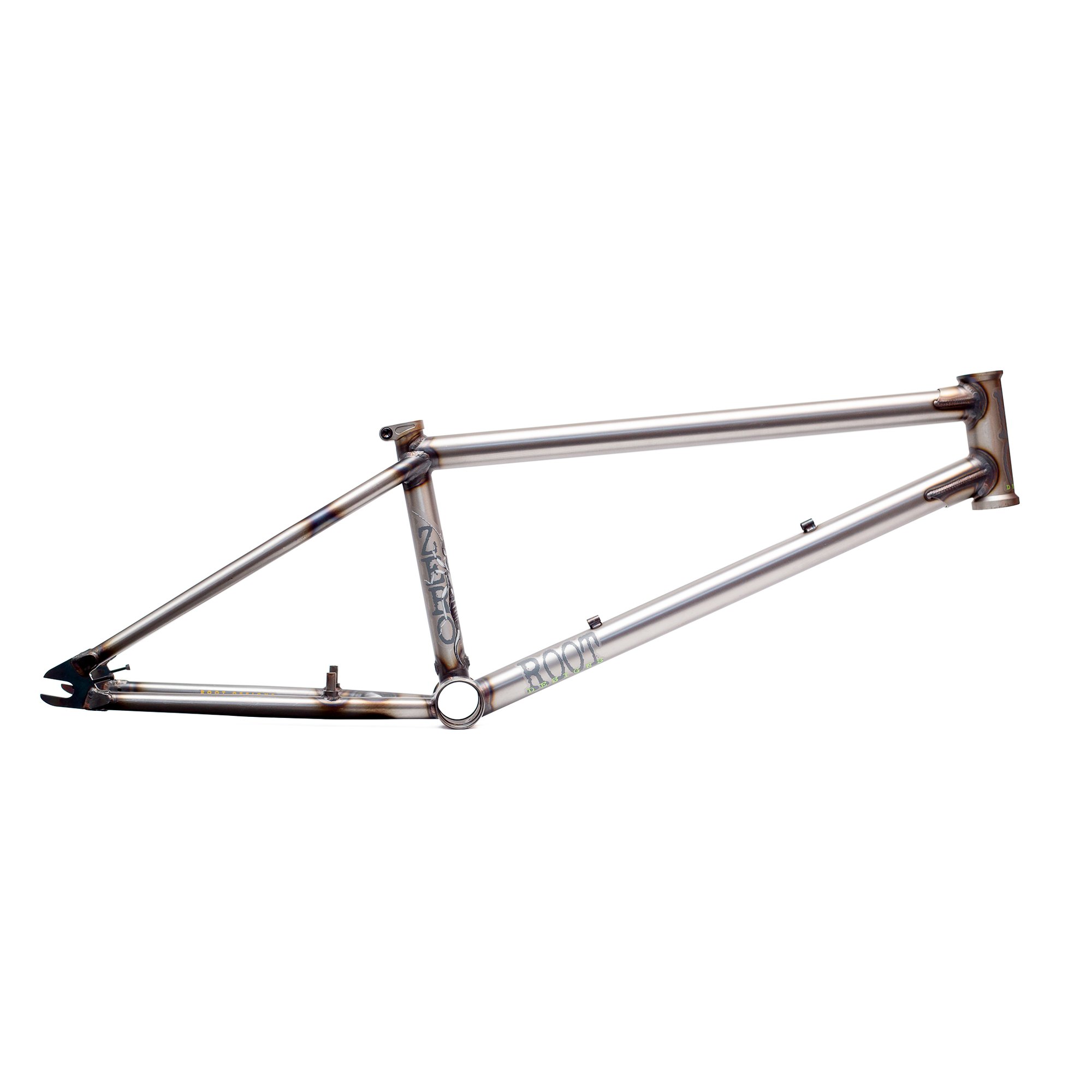

The bare metal frames are just that. We've ordered those for custom painting. If you want to get your own painted it's less expensive. They're not polished or lacquered so they WILL rust if left bare metal. The raw frames are polished and lacquered (matte) but can still be subject to rust streaks where the lacquer is scratched and water is allowed on to the tubing.

Custom powder coat colours are available. Please email for a link to colours/finishes. We'll be happy to confirm the cost (usually around £65).

Free UK shipping.

Dealer enquiries are welcome.

International orders are likely to incur charges for import duty.

US orders have duty pre-paid (PDDP). The shipping isn't cheap because we've pre-paid your duties. Orders shouldn't take more than 5-7 days for delivery as no further clearance is neccessary.
